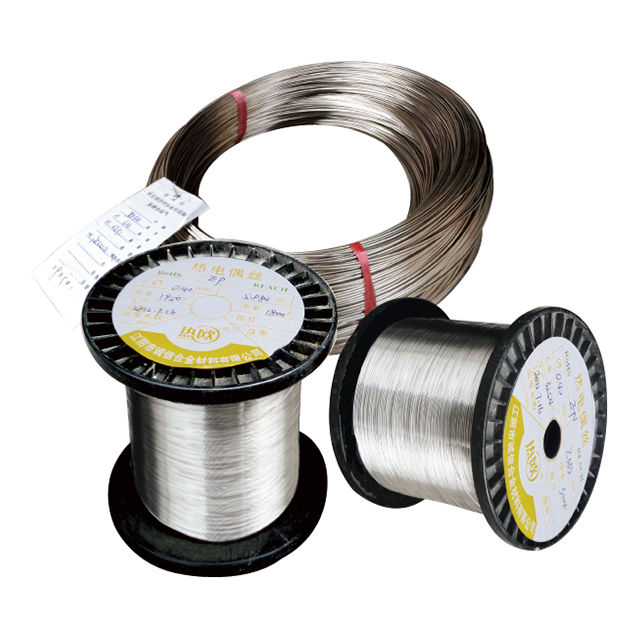

NiCr- CuNi thermocouple (type E) is also named NiCr- Constantan thermocouple. The main chemical composition of positive leg NiCr (EP) is Ni: Cr≈90:10; negative leg Constantan (EN) is Cu: Ni≈ 55%: 45%. Although EN, TN, JN are all called Constantan, EN and TN don not give the same EMF output curve as JN. EN and TN are able to interchange but they are not interchangeable with JN. The operating temperature range of type E thermocouple is -200~900℃.
Type E thermocouple has the largest EMF output and highest sensitivity, so it is ideal for measuring small temperature change. It also has good stability in the low temperature range up to 300℃, and good property of anti-corrosion in humidity atmosphere. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in reducing atmosphere and atmosphere with sulphur gases.
Thermocouple temperature range and tolerance
Name 热电偶名称
| Usag Classification 分度 | Grade 等级 | Operating temperature range (℃)最高使用温度范围 |
Temperature range(℃) 温度范围
| Tolerance 允许偏差 | Standard
热行标准 | ||
Long term长期 | Short term 短期 | |||||||
NiCr- CuNi(Type E) thermocouple bright wire 镍铬-铜镍(康铜)(E型)热电偶
| E | I | 750 | 900 | -40~800 | +1.5℃ or +0.4%t | GB/T4993 | |
Ⅱ | -40~900 |
+2.5℃ or +0.75%t | ||||||
* Operating temperature range (℃) 最高使用温度范围指下列规格: Ø3.2mm。 |
