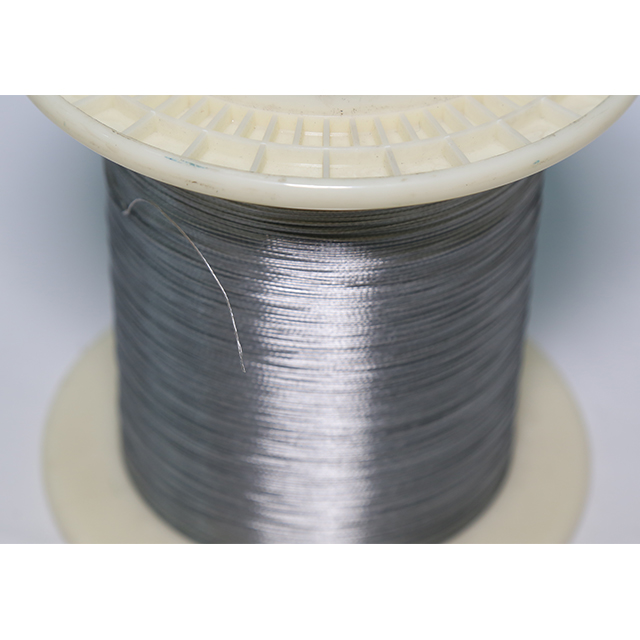

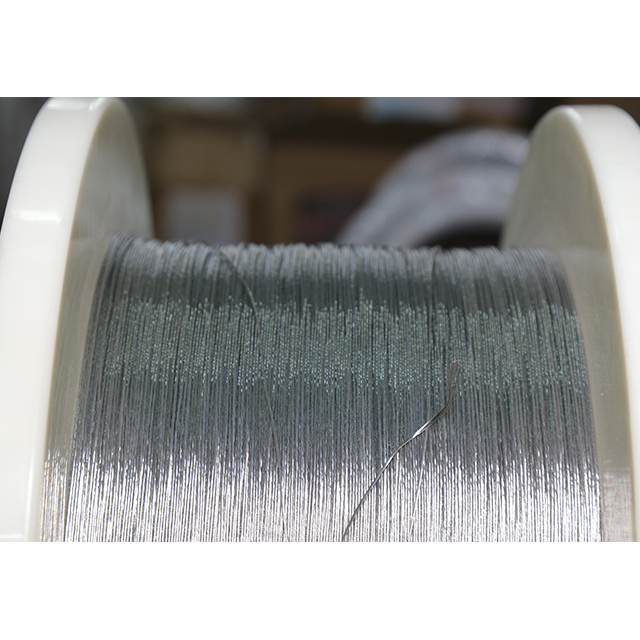

Alloy Wire Strand

Stranded wire consists of many single alloy wires twisted together in certain rules. We can produce various strand wires, including NiCr strand wire, CuNi strand wire, Karma strand wire,and Copper strand wire and so on. It can be used for heating cable, heating wire for car seat etc.
Availability:
Quantity:

Product code

Description

Standard packing

Range

Specification

CX1201

19-Strand Nickel-Chrome Wire(80/20)

500m/roll

7 x 19股: 0.08mm (.0031”) to 0.71mm (0.028”)
7 x 7 股: 0.08mm (.0031”) to 0.71mm (0.028”)
1 x 19股: 0.07mm (.0028”) to 0.71mm (0.028”)
1 x 7 股  0.06mm (.0024”) to 0.71mm (0.028”)

Materials:80% Nickel&20% chromium

Overall Diameter:2.83mm

No of Strands:19strands, 19/0.56mm,twisted together

CX1207

Nickel Cold Tail Wire

500m/roll

Materials:Pure Nickel

Overall Diameter:3.07mm

No of Strands: 18/0.61mm + 1/0.71mm,19strands, 19/0.56mm, twisted together

Size range:≥0.02mm(3-1000strands)


7*19


7*7


1*19


1*7
