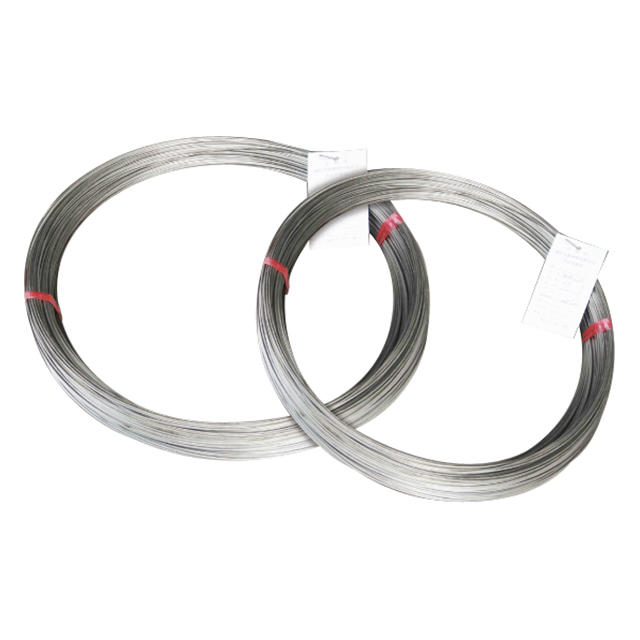

Fe-CuNi thermocouple (type J) is also named Fe- Constantan thermocouple. The positive leg Fe(JP) is made by pure Iron, and the main chemical composition of negative leg Constantan (JN) is Cu: Ni≈ 55%: 45%. Although they are all called Constantan, JN does not give the same EMF output curve as EN and TN, it cannot be instead by other Constantan.
The operating temperature range of type J thermocouple is -210~1200℃, but it is usually used in the temperature range 0~750℃ due to embrittlement of Iron.
Type J thermocouple has good resistance to oxidation and high EMF output against Platinum 67, with good temperature accuracy, sensitivity and stability. It is recommended for vacuum, oxidizing, reducing or inert atmospheres, but it can not be used in sulphurous atmosphere above 500℃.
Thermocouple temperature range and tolerance
Name 热电偶名称
| Usag Classification 分度 | Grade 等级 | Operating temperature range (℃)最高使用温度范围 |
Temperature range(℃) 温度范围
| Tolerance 允许偏差 | Standard
热行标准 | ||
Long term长期 | Short term 短期 | |||||||
Fe- CuNi(Type J) thermocouple bright wire 铁-铜镍(康铜)(J型)热电偶
| J | I | 600 | 750 | -40~750
| +1.5℃ or +0.4%t | GB/T4994 | |
Ⅱ |
+2.5℃ or +0.75%t | |||||||
* Operating temperature range (℃) 最高使用温度范围指下列规格: Ø3.2mm。 |
