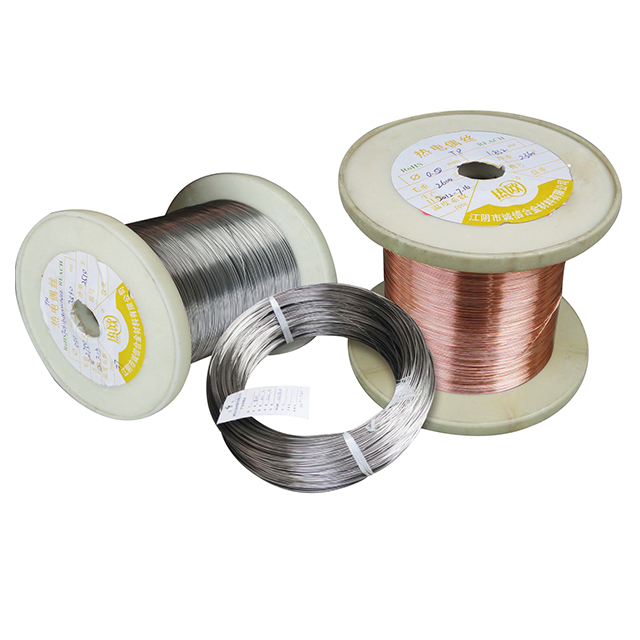

Cu-CuNi thermocouple (type T) is also named Cu- Constantan thermocouple. The positive leg Cu(TP) is made by pure Copper, and the main chemical composition of negative leg Constantan (TN) is Cu: Ni≈ 55%: 45%. Although EN, TN, JN are all called Constantan, TN and EN don not give the same EMF output curve as JN. EN and TN are able to interchange but they are not interchangeable with JN. The operating temperature range of type T thermocouple is -200~350℃, Due to the low resistance of oxidation that Copper has, it is not advisable to go beyond that range.
Type T thermocouple has good resistance to oxidation, high EMF output, with good temperature accuracy, sensitivity and stability. In the temperature range -200~0℃, it has better property, the year stability is less than ±3μV.
Thermocouple temperature range and tolerance
Name 热电偶名称
| Usag Classification 分度 | Grade 等级 | Operating temperature range (℃)最高使用温度范围 |
Temperature range(℃) 温度范围
| Tolerance 允许偏差 | Standard
热行标准 | |||
Long term长期 | Short term 短期 | ||||||||
Cu- CuNi (Type T) thermocouple bright wire 铜-铜镍(康铜)(T型)热电偶
| T | I | 300 | 350 | -40~350 | ±0.5℃ or ±0.4%t | GB/T2903 | ||
Ⅱ | ±1℃ or ±0.75%t | ||||||||
III | |||||||||
-200~40 | ±1℃ or ±1.5%t | ||||||||
* Operating temperature range (℃) 最高使用温度范围指下列规格: Ø2.0mm |
